Premium Self-Install 40m Head Solar Pumping Kit
Premium LORENTZ S1-200 40m head self-install HR-07 solar pumping kit. Delivers up to 2,500L/day at 40m vertical lift. Includes everything you need to get started solar pumping!
Trusted By Major Brands
Package Includes
As a global leader in solar water pumping, you can depend on us. Our self-install solar pump kits include all the basics you need to start pumping right away, with no hidden costs. Further sensors and accessories are also available to customise your kit.**
- Premium submersible pump & motor
- 15 metre motor cable*

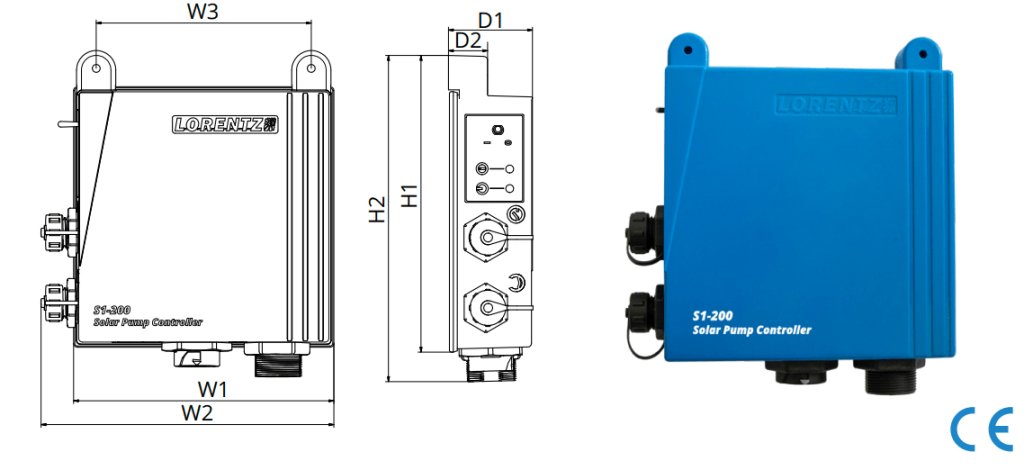

- Premium Bluetooth® linked pump controller
- 2 x100w solar panels
- Quality Clenergy A-frame for mounting solar panels
- Instruction booklet
- Bluetooth® access to S-connect app for control & management
*Extension cables available as an optional extra for bores and other applications requiring long motor cable runs. **Sensors and accessories, such as dry-run protection, are available as optional extras.
Pump Features
A small, but high performing premium submersible solar pump enough water for 200 showers, 250 cattle or to water an acre of crops every day.
- High efficiency ECDRIVE DC brushless motor and helical rotor pump
- System controller with plugged connections
- Bluetooth® connectivity for local configuration and control
- iOS or Android S-Connect app for speed control, timers and trouble shooting
Example application types
S1-200 used to irrigate a field with a hose
The picture below shows an S1-200 pump system providing water to irrigate a field. The pump is installed in the water source which is in this example a pond (A). A person is standing with a hose in their hand irrigating any kind of crop (B). Basic components of an S1-200 pump system are installed: Pump (1), controller (2) and PV modules (3).
S1-200 used to irrigate a field using sprinklers
The pump is installed in the water source, which in this example is a pond (A) and will be used to irrigate a field (B) under pressure using a sprinkler irrigation kit (4). The basic components of an S1-200 pump system are installed: Pump (1), controller (2), and photovoltaic modules (3).
S1-200 used in drip irrigation
The pump is installed in the water source, which in this example is a pond (A) and will be used to irrigate a field (B) using a drip
irrigation system. The basic components of an S1-200 pump system are installed: Pump (1), controller (2) and PV modules (3).
S1-200 used to fill a tank
The picture below shows an S1-200 pump system which pumps water up to a tank (B). By gravity the water is used to irrigate a field and to fill a reservoir (C). The pump is installed in the water source which is in this example a well (A). Basic components of an S1-200 pump system are installed: Pump (1), controller (2) and PV modules (3). In addition to that a dry run protection (4) and a tank full switch are installed (5).
S1-200 used to transfer water from one tank to another tank located at a higher location
The following image shows an S1-200 system pumping water from one tank (A) to another tank (B) that is located uphill, to finally irrigate a field (C). The basic components of an S1-200 pumping system are installed: Pump (1) - in this example in horizontal position -, controller (2) and PV modules (3). In addition, a dry run protection (4) - note that it is installed vertically - and a tank full switch (5) are installed.
S1-200 used to pump water from a well to a tank located in a remote location
The following image shows an S1-200 system pumping water from a well (A) to a tank with a float valve (B) that is located too far away to use the LORENTZ full tank switch accessory, and finally supplying water to a field and livestock by gravity action (C). The basic components of an S1-200 pumping system are installed: Pump (1), controller (2) and PV modules (3). In addition, a dry run protection (4) and a remote tank switch are installed on the discharge hose (5). The float valve is not included in the LORENTZ accessory portfolio.
Key benefits of LORENTZ "S"
- Easy, no-tool pump installation
- Durable positive cavity submersible pump
- Top quality, durable materials
- Fully waterproof components for outdoor use
- Unique plugs eliminate incorrect connections
- Built-in data storage & BluetoothTM controls via app
- Easy maintenance & control from our mobile app
LORENTZ S-Connect App
I’m very excited to have the LORENTZ system on our property. Now we use solar energy to pump water from our creek to the header tank, and gravity drop to irrigate, the cost has not only decreased astronomically – it’s non-existent.
Our priority was to offer cost-effective solutions that would benefit our customers in the long run. This is why we opted for LORENTZ Australia Solar Pumps, which require minimal maintenance and reduce expenses over time. By eliminating the need for frequent refueling and servicing, we ensure = that our solar pump systems remain economically viable for years to come.
FAQ
Solar water pumps are an efficient way to irrigate your crops or garden and provide accessible water for livestock, especially in areas without access to electricity. Using solar power, they have non-existing operating costs and are ideal for a wide range of pumping applications.
The LORENTZ S solar pumping kit range includes all the basics you need to get started for $2,596.00, and is suitable for applications of up to 40m head (vertical lift) or 20,000 litres per day. For other, larger applications, pump cost depends on a number of factors including:
- Reduced operating costs and increased profitability
- Integrated controls, settings and data management
- More control of your water
Use our LORENTZ S sizing tool or speak to one of our expert dealers to find the best solar pumping solution for you.
The LORENTZ S solar pumping kit range includes all the basics you need to get started for $2,596.00, and is suitable for applications of up to 40m head (vertical lift) or 20,000 litres per day. For other, larger applications, pump cost depends on a number of factors, including:
- Amount of water required
- Elevation height from water source to final destination
- Pipe length and diameter
There are other considerations, however the best way to cost up a pump for your business is to contact your closest dealer so they can provide the best solution for your investment.
Solar pumps can be effective in a wide range of applications. Commonly used in agriculture, they are also used in domestic, mining, drinking water, industrial and any other applications where cost-effective and reliable transfer of water is required.
ReAqua is the exclusive distributor of the LORENTZ range of solar pumps and accessories for Australia, New Zealand and the Pacific Islands. ReAqua is 100% Australian owned and operated, and works directly with a network of expert dealers across the region to bring you the world's best solar pumping solutions.
Note: kit does not include tank full or water level switches. A water level switch is strongly recommended for applications where the water level fluctuates, to avoid the pump running while not submerged in water. ‘Dry running’ pumps can lead to immediate failure and is not covered under manufacturers warranty. Please refer to LORENTZ ‘S’ accessories for further details on these sensors.
